RSGB CW National Field Day. Diagrams relating to Frequently Asked Questions

These diagrams may help to explain the antenna and receiver muting requirements.

FIGURE 1.

FIGURE 2.

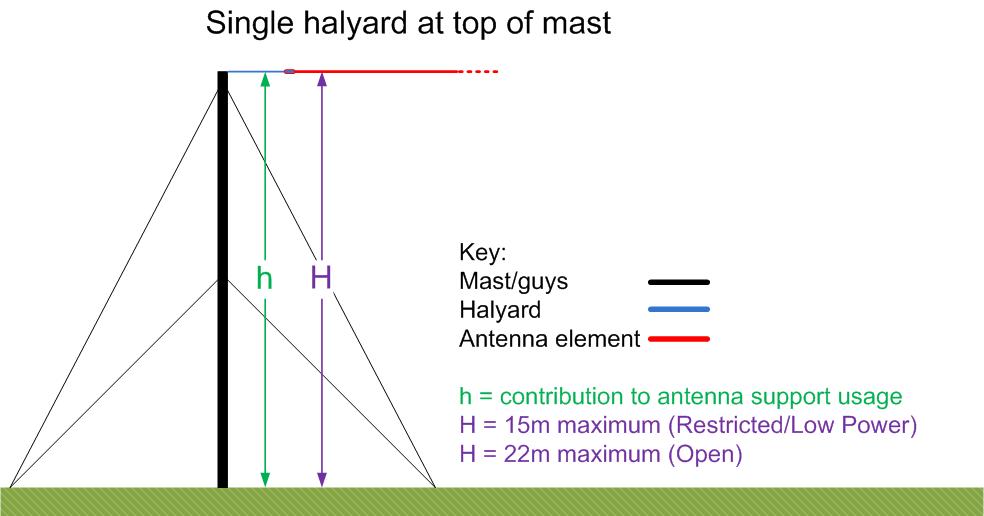

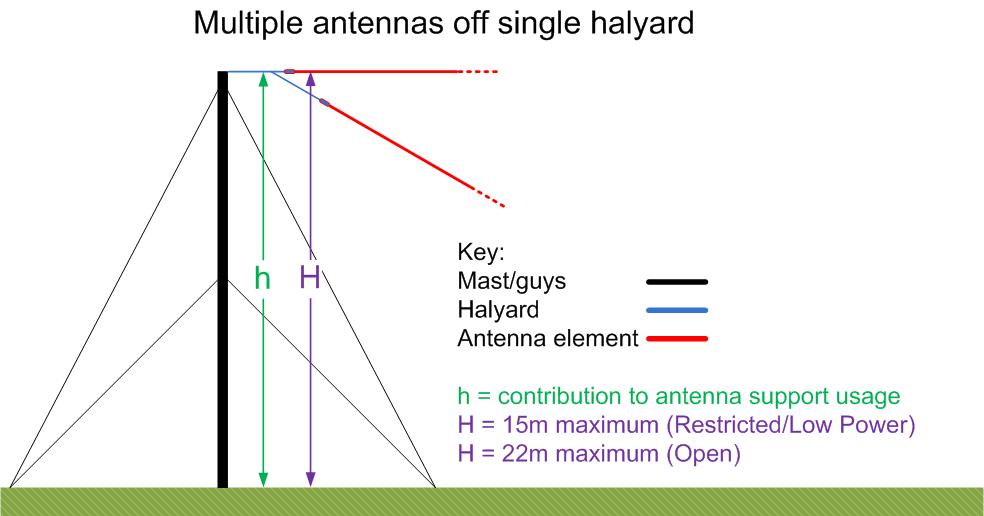

FIGURE 3.

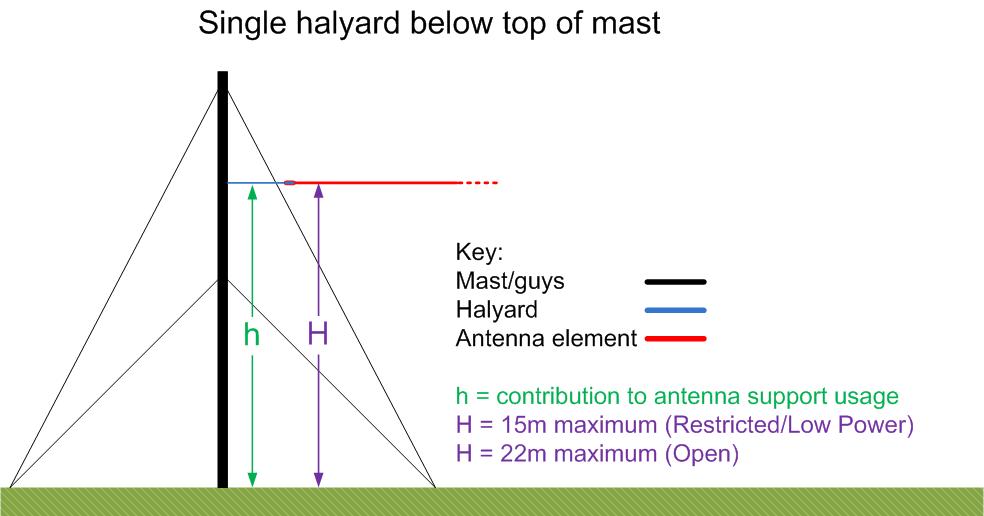

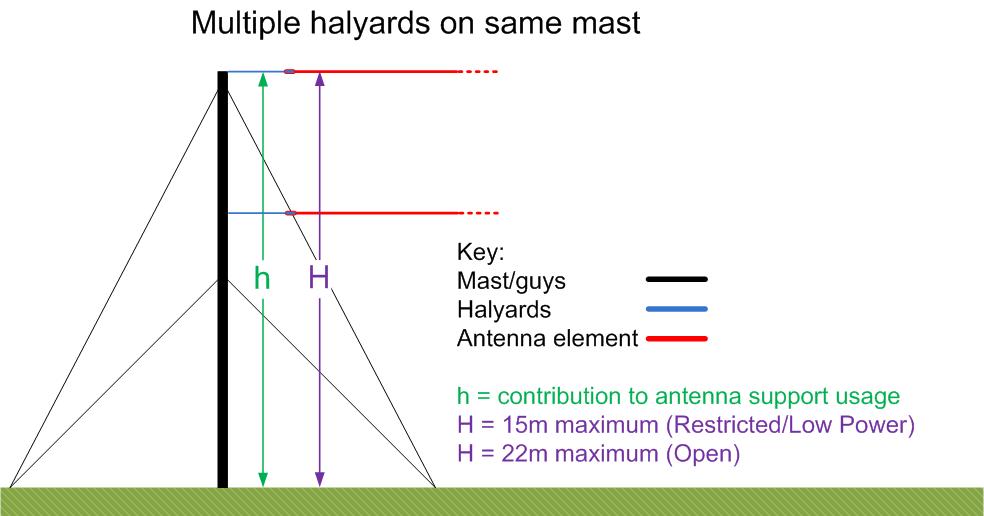

FIGURE 4.

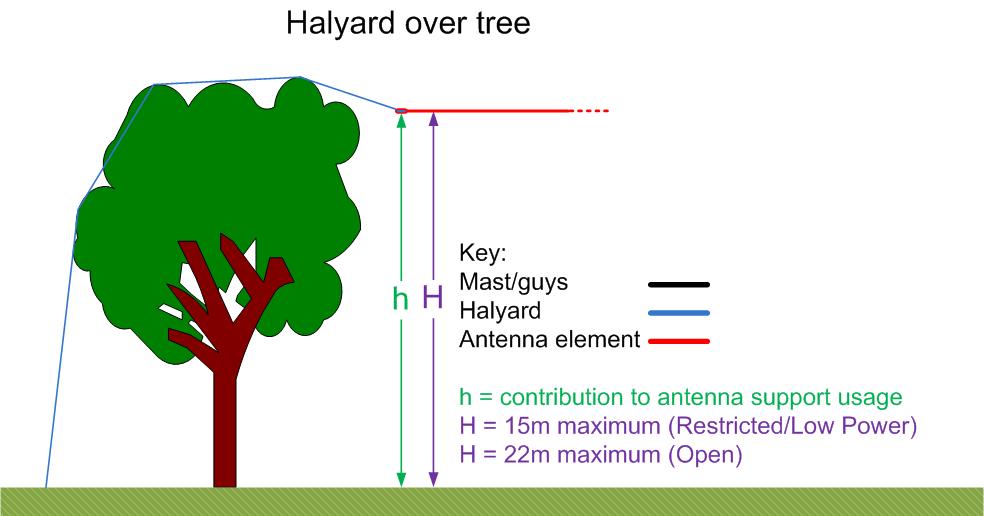

FIGURE 5.

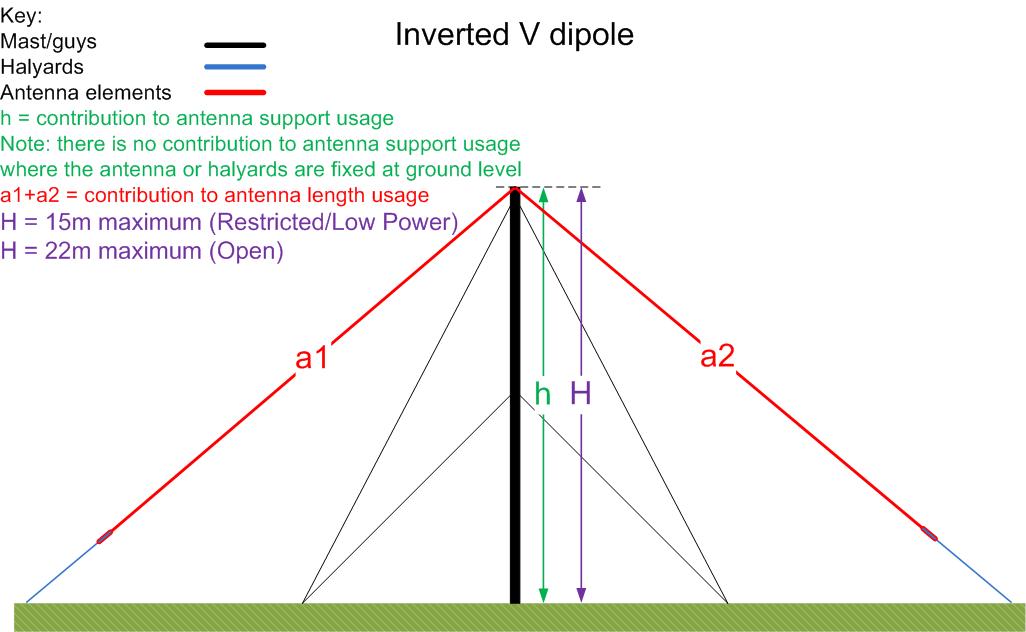

FIGURE 6.

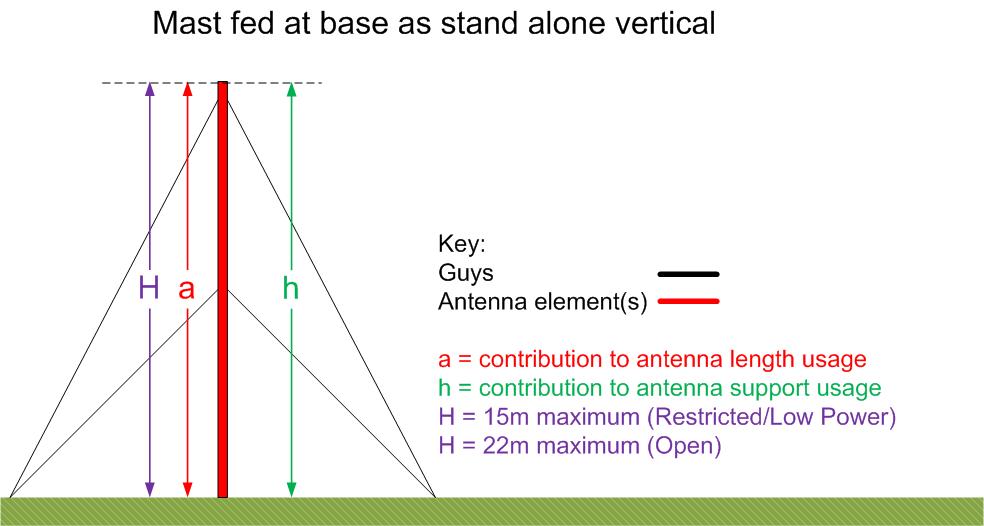

FIGURE 7.

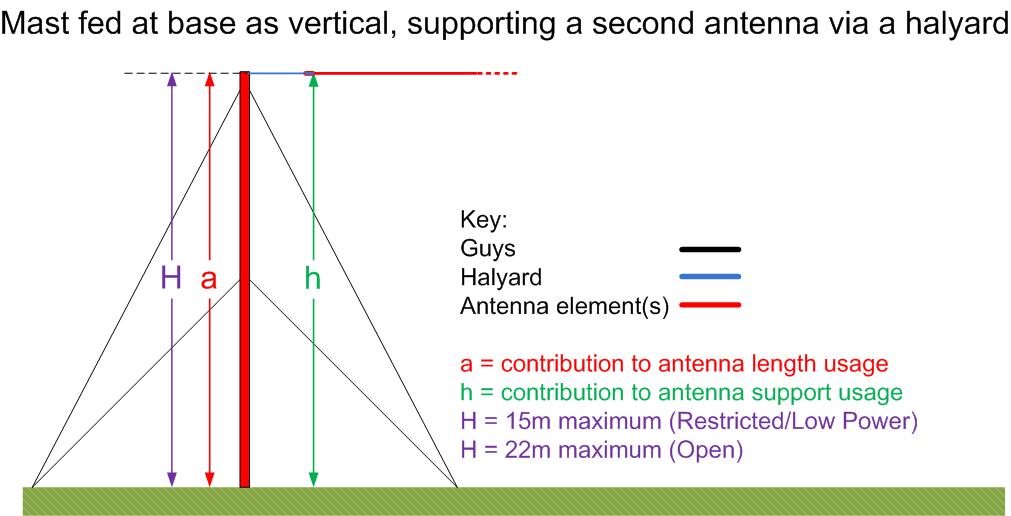

FIGURE 8.

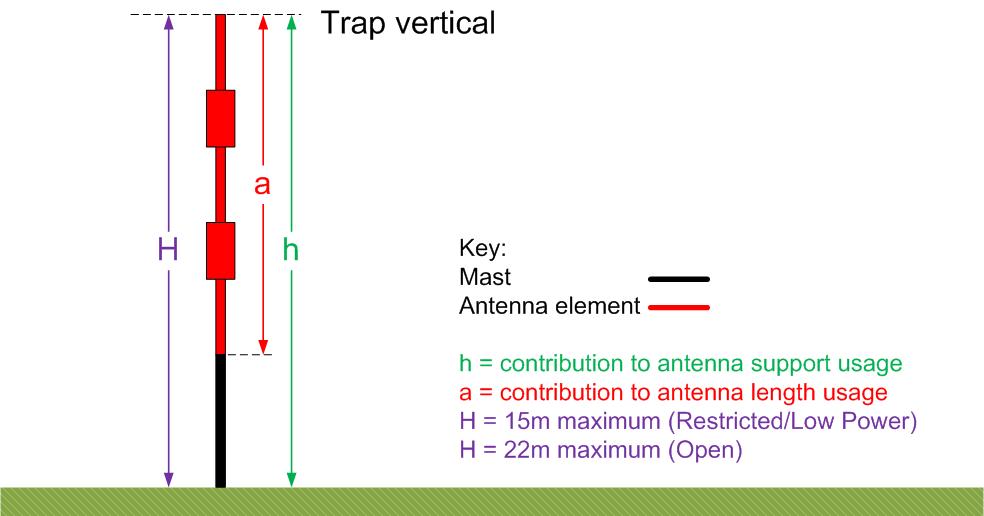

FIGURE 9.

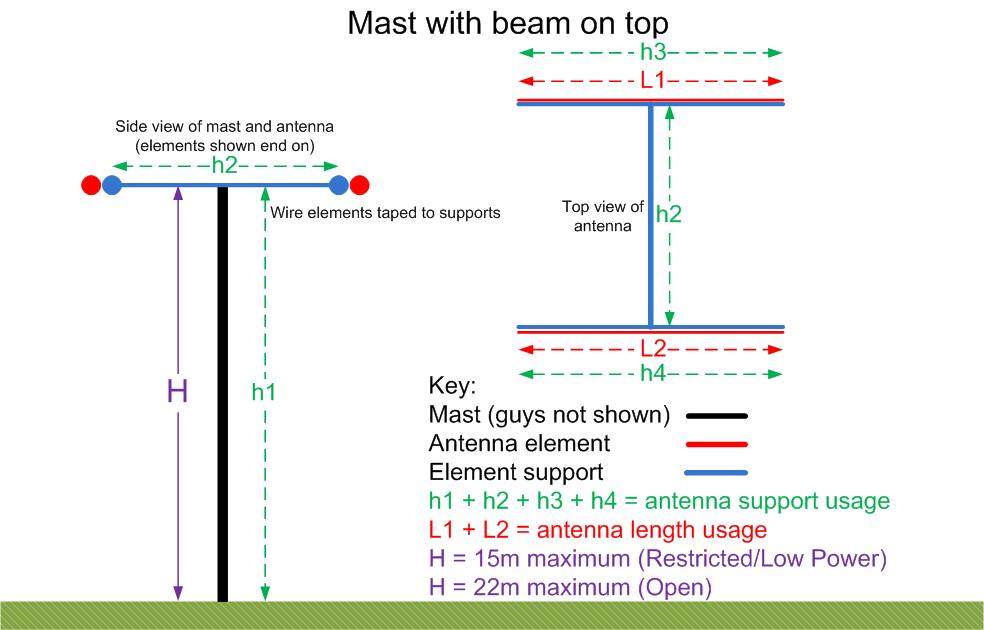

FIGURE 10.
