RSGB CW National Field Day. Diagrams relating to Frequently Asked Questions

These diagrams may help to clarify the Restricted Section antenna arrangements

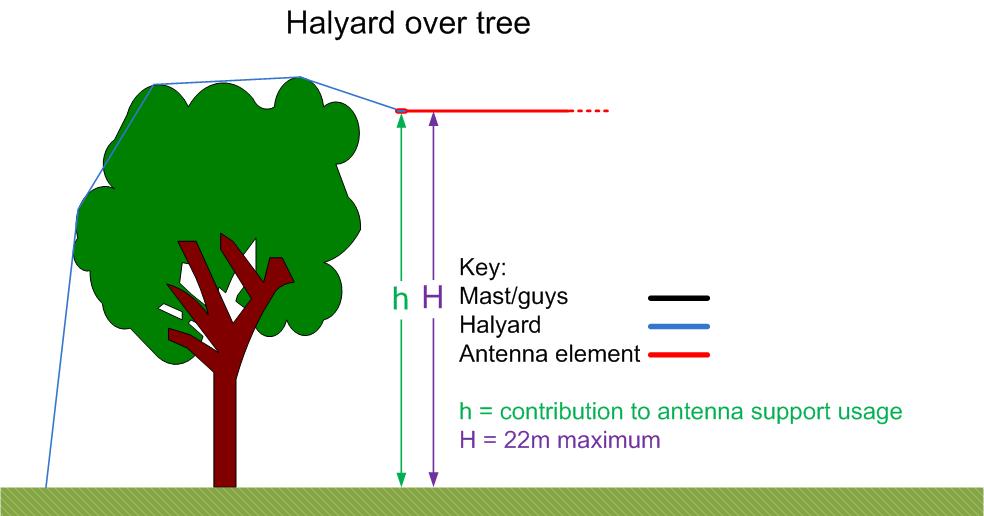

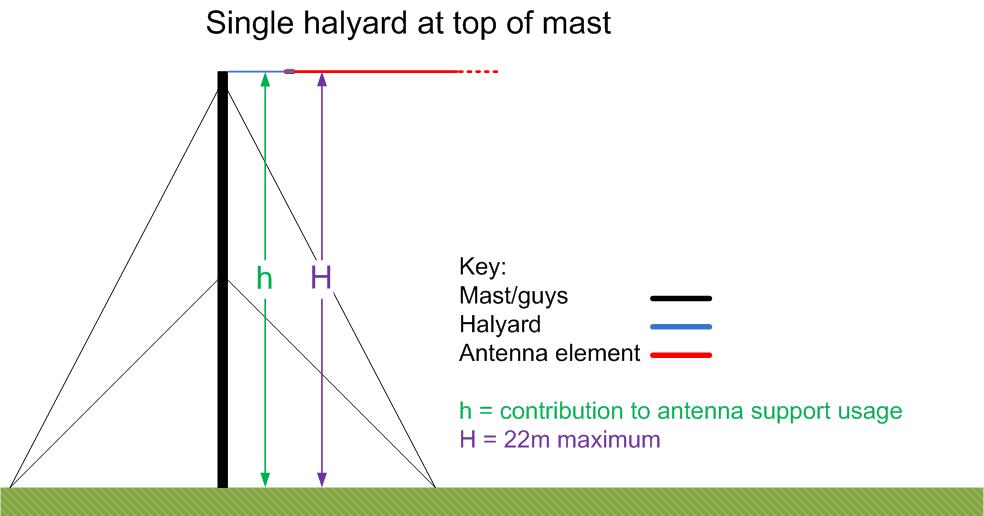

FIGURE 1.

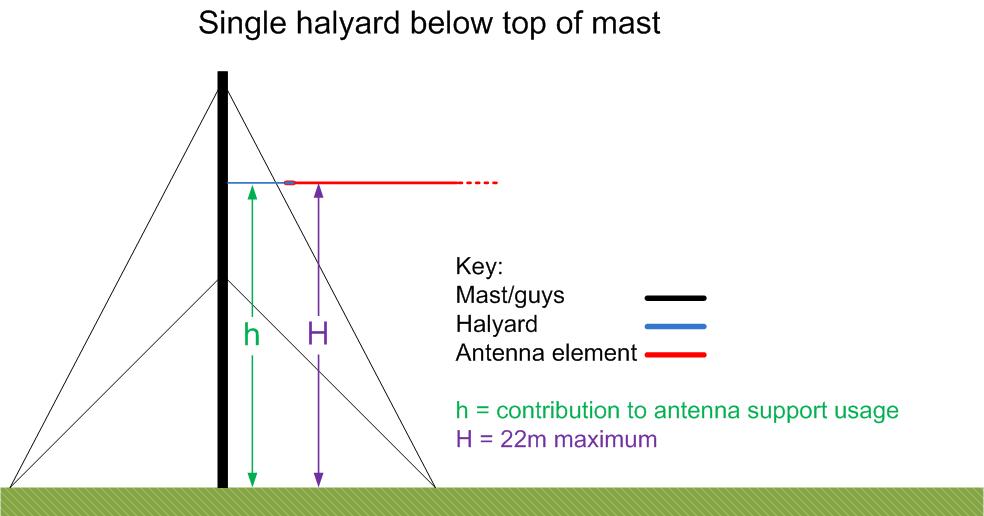

FIGURE 2.

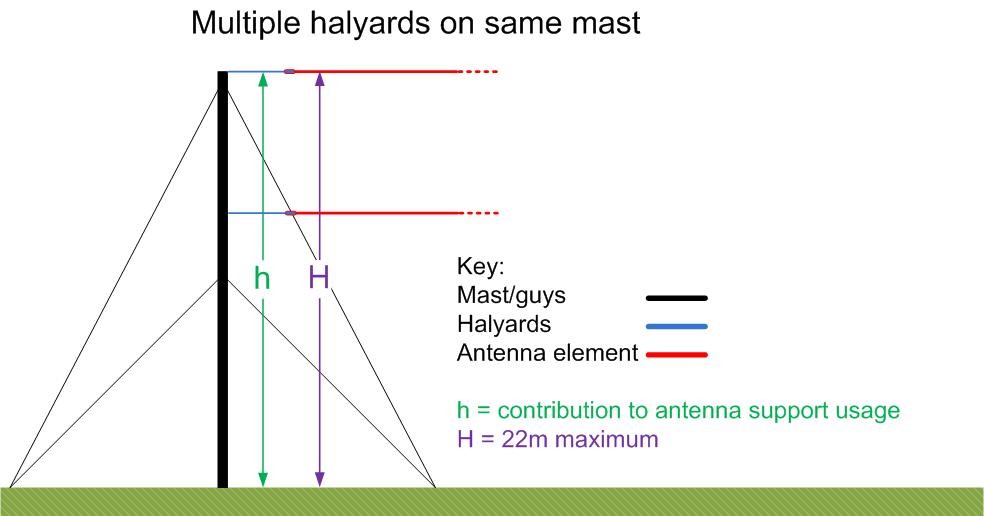

FIGURE 3.

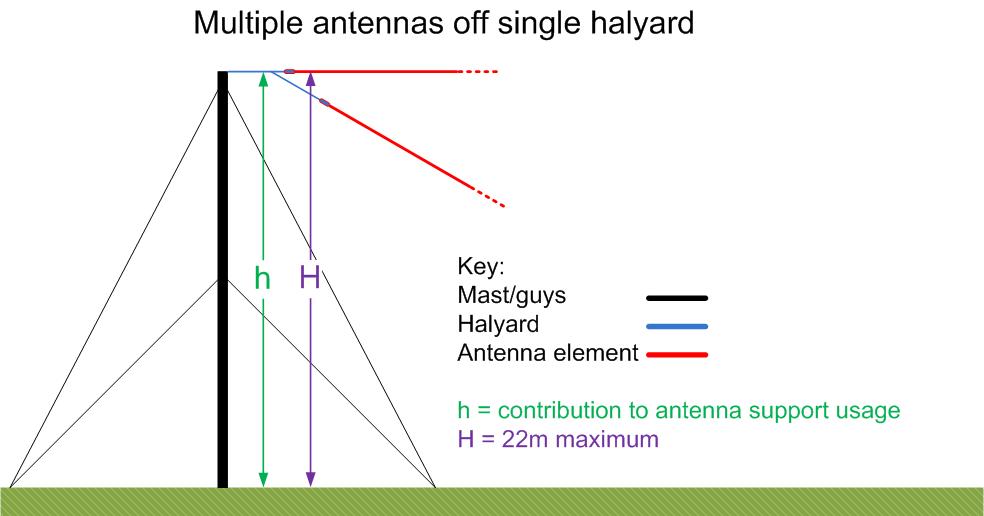

FIGURE 4.

FIGURE 5.

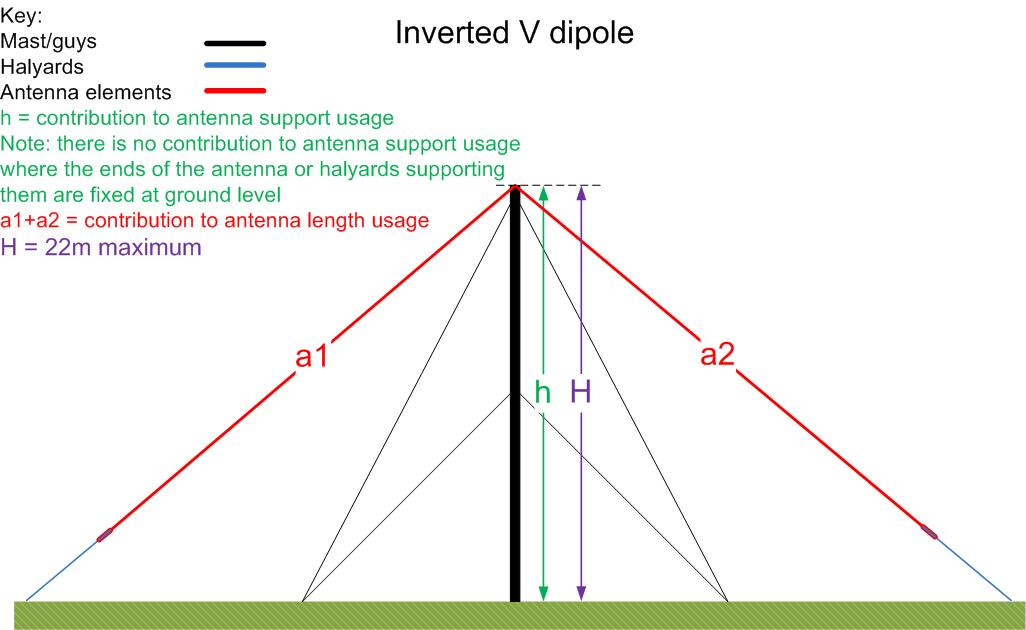

FIGURE 6.

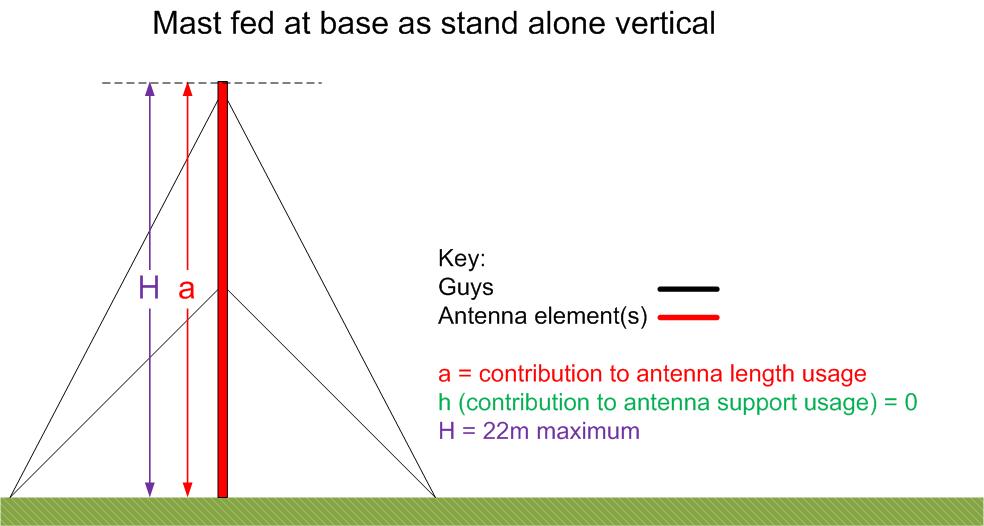

FIGURE 7.

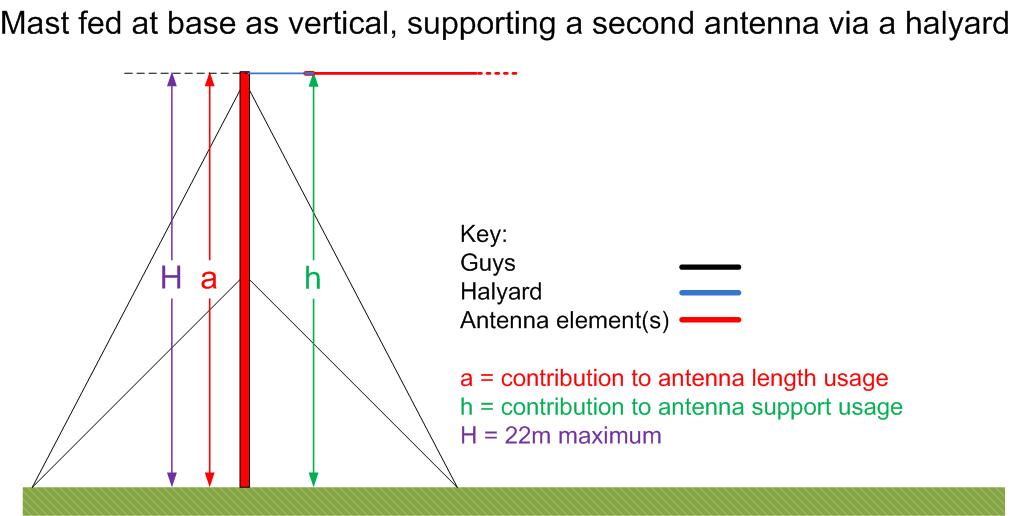

FIGURE 8.

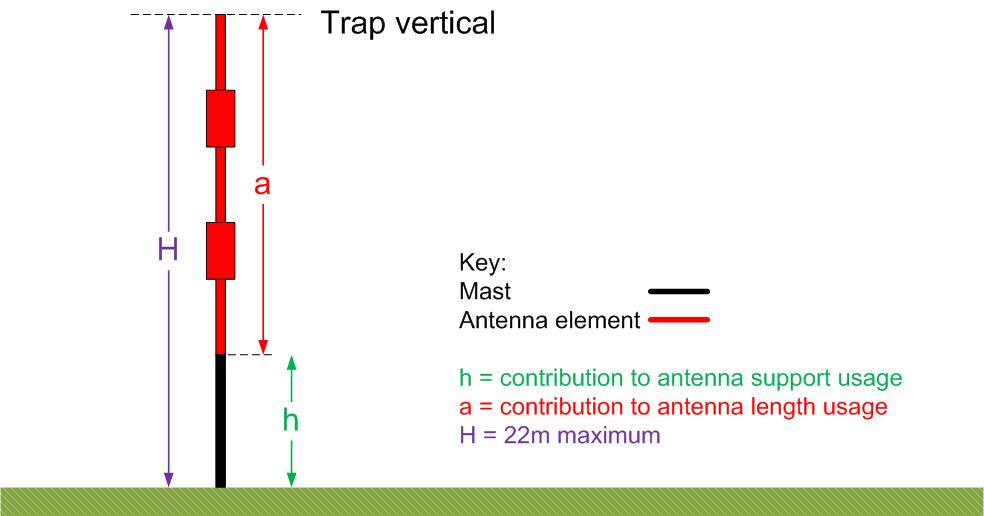

FIGURE 9.
